DX

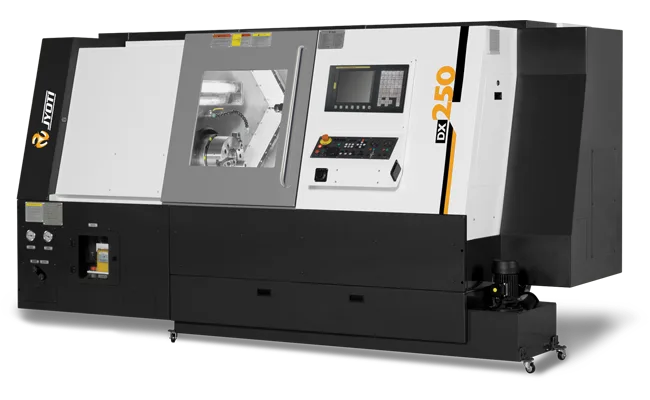

DX SeriesDX 250/350
Varients:
DX 250-500,250-700 / 1000, DX 350-700 / 1000 / 1500 / 2000
Taking turning technology, a step ahead towards performance in hard part machining DX Series offers greater flexibility to complete machining in single setup and distinct competitive edge. Monoblock 45° slant bed structure and roller type L.M. Guideways to provide advanced rigidity and durability to reduce vibration effect and to get increased tool life. With 8-station bi-directional turret, series is benchmarked for power, torque, heavier cuts, accuracy, precision and load carrying capacity. Along with large diameter of component, the series finds its suitability for hard complex jobs with cost effective solution.
Key Features
- Rigid bed and single piece 45°slant structure.
- Powerful high torque spindle with rigid headstock.
- Wide liner motion roller type guide ways.
- High speed – high precise bi-directional servo turret.
- Live tool turret option available for milling operations.
- Ergonomically design concept.
- Efficient chip removal without disturbing machining.
- Tail stock with hydraulic quill.
- Hydraulic chucking.
- Auto and manual coolant system.
- Electrical with quality devices & panel with A.C.
- Centralized & programmable lubrication.
Monoblock rigid Structure- 3-point Leveling
- Bi-directional servo turret
- TPM Friendliness
| DX 250 - 500 | DX 250 - 700 | DX 250 - 1000 | DX 350 - 700 A | DX 350 - 700 B | DX 350 - 1000 A | DX 350 - 1000 B | DX 350 - 1500 A | DX 350 - 1500 B | DX 350 - 2000 A | DX 350 - 2000 B | ||
| Capacity | ||||||||||||
| Swing Over Bed | inch (mm) | 19.68 (500) | 23.62 (600) | 23.62 (600) | 29.13 (740) | 29.13 (740) | 29.13 (740) | 29.13 (740) | 29.13 (740) | 29.13 (740) | 26.77 (680) | 26.77 (680) |
| Std. Turning Dia. | inch (mm) | 11.81 (300) | 11.81 (300) | 11.81 (300) | 16.33 (415) | 16.33 (415) | 16.33 (415) | 16.33 (415) | 16.33 (415) | 16.33 (415) | 16.33 (415) | 16.33 (415) |
| Max. Turning Dia.* | inch (mm) | 19.29 (490) | 18.89 (480) | 18.89 (480) | 23.62 (600) | 23.62 (600) | 23.62 (600) | 23.62 (600) | 23.62 (600) | 23.62 (600) | 23.62 (600) | 23.62 (600) |
| Max. Turning Length* | inch (mm) | 19.68 (500) | 27.55 (700) | 39.37 (1000) | 27.55 (700) | 27.55 (700) | 39.37 (1000) | 39.37 (1000) | 59.05 (1500) | 59.05 (1500) | 78.74 (2000) | 78.74 (2000) |
| Slides | ||||||||||||
| X-Axis Travel (Cross) | inch (mm) | 9.84 (250) | 9.84 (250) | 9.84 (250) | 12.20 (310) | 12.20 (310) | 12.20 (310) | 12.20 (310) | 12.20 (310) | 12.20 (310) | 12.20 (310) | 12.20 (310) |
| Z-Axis Travel (Longitudinal) | inch (mm) | 20.47 (520) | 27.55 (700) | 39.37 (1000) | 27.55 (700) | 27.55 (700) | 39.37 (1000) | 39.37 (1000) | 66.92 (1700) | 66.92 (1700) | 78.74 (2000) | 78.74 (2000) |
| Rapid Feed (X & Z axis) | ipm (m/min) | 944.88 (24) | 944.88 (24) | 944.88 (24) | 944.88 (24) | 944.88 (24) | 944.88 (24) | 944.88 (24) | 944.88 (24) | 944.88 (24) | 944.88 (24) | 944.88 (24) |
| Main Spindle | ||||||||||||
| Spindle Motor Power - Fanuc | hp (kW) | 20.11/14.75 (15/11) | 20.11/14.75 (15/11) | 20.11/14.75 (15/11) | 24.80/20.11 (18.5/15) | 29.50/24.80 (22/18.5) | 24.80/20.11 (18.5/15) | 29.50/24.80 (22/18.5) | 24.80/20.11 (18.5/15) | 29.50/24.80 (22/18.5) | 24.80/20.11 (18.5/15) | 29.50/24.80 (22/18.5) |
| Spindle Motor Power - Siemens | hp (kW) | 19.31/14.75 (14.4/11) | 20.91/16.09 (15.6/12) | 20.91/16.09 (15.6/12) | 20.91/16.09 (15.6/12) | 37.28/24.80 (27.8/18.5) | 20.91/16.09 (15.6/12) | 37.28/24.80 (27.8/18.5) | 20.91/16.09 (15.6/12) | 37.28/24.80 (27.8/18.5) | 20.91/16.09 (15.6/12) | 37.28/24.80 (27.8/18.5) |
| Spindle Speed Range | rpm | 50-3500 | 50-2500 | 50-2500 | 50-2500 | 50-1500 | 50-2500 | 50-1500 | 50-2500 | 50-1500 | 50-2500 | 50-1500 |
| Spindle Bore | inch (mm) | 3.54 (90) | 3.14 (80) | 3.14 (80) | 3.14 (80) | 4.33 (110) | 3.14 (80) | 4.33 (110) | 3.14 (80) | 4.33 (110) | 3.14 (80) | 4.33 (110) |
| Spindle Nose | A2-8 | A2-8 | A2-8 | A2-8 | A2-11 | A2-8 | A2-11 | A2-8 | A2-11 | A2-8 | A2-11 | |
| Max. Bar Capacity | inch (mm) | 2.95 (75) | 2.55 (65) | 2.55 (65) | 2.55 (65) | 3.54 (90) | 2.55 (65) | 3.54 (90) | 2.55 (65) | 3.54 (90) | 2.55 (65) | 3.54 (90) |
| Turret | ||||||||||||
| No. of Tool Station | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 12 | 8 | 12 | |
| Max. Boring Bar Dia. | inch (mm) | 1.57 (40) | 1.57 (40) | 1.57 (40) | 1.57 (40) | 1.96 (50) | 1.57 (40) | 1.96 (50) | 1.96 (50) | 1.96 (50) | 1.96 (50) | 1.96 (50) |
| Tool Size (Cross Sectional) | inch (mm) | 0.98 x 0.98 (25 x 25) | 0.98 x 0.98 (25 x 25) | 0.98 x 0.98 (25 x 25) | 0.98 x 0.98 (25 x 25) | 1.25 x 1.25 (32 X 32) | 0.98 x 0.98 (25 x 25) | 1.25 x 1.25 (32 X 32) | 1.25 x 1.25 (32 X 32) | 1.25 x 1.25 (32 X 32) | 1.25 x 1.25 (32 X 32) | 1.25 x 1.25 (32 X 32) |
| Tail Stock | ||||||||||||
| Quill Dia. | inch (mm) | 3.34 (85) | 3.93 (100) | 3.93 (100) | 3.93 (100) | 3.93 (100) | 3.93 (100) | 3.93 (100) | 5.11 (130) | 5.11 (130) | 5.11 (130) | 5.11 (130) |
| Quill Stroke | inch (mm) | 4.72(120) | 4.72 (120) | 4.72 (120) | 4.72 (120) | 4.72 (120) | 4.72 (120) | 4.72 (120) | 5.90 (150) | 5.90 (150) | 5.90 (150) | 5.90 (150) |
| Thrust (Adjustable) | kgf (Max.) | 1102 (500) | 1102 (500) | 1102 (500) | 1102 (500) | 1102 (500) | 1102 (500) | 1102 (500) | 2204 (1000) | 2204 (1000) | 2204 (1000) | 2204 (1000) |
| Accuracy (As per VDI/DGQ 3441) | ||||||||||||
| Positioning Uncertainty (P) | inch (mm) | 0.00027 (0.007) | 0.00039 (0.01) | 0.00039 (0.01) | 0.00039 (0.01) | 0.00039 (0.01) | 0.00039 (0.01) | 0.00039 (0.01) | 0.00059 (0.015) | 0.00059 (0.015) | 0.00059 (0.015) | 0.00059 (0.015) |
| Repeatability (Ps medium) | inch (mm) | 0.00019 (0.005) | 0.00019 (0.005) | 0.00019 (0.005) | 0.00019 (0.005) | 0.00019 (0.005) | 0.00019 (0.005) | 0.00019 (0.005) | 0.00027 (0.007) | 0.00027 (0.007) | 0.00027 (0.007) | 0.00027 (0.007) |
| Other Data | ||||||||||||
| Machine Weight (Approx.) | lb (kg) | 8818 (4000) | 12676 (5750) | 13227 (6000) | 14330 (6500) | 14330 (6500) | 14881 (6750) | 14881 (6750) | 22046 (10000) | 22046 (10000) | 22487 (10200) | 22487 (10200) |
| Machine Dimension (Approx.) | ||||||||||||
| Length | inch (mm) | 94.48 (2400) | 119.29 (3030) | 137.79 (3500) | 119.29 (3030) | 119.29 (3030) | 140.15 (3560) | 140.15 (3560) | 195.66 (4970) | 195.66 (4970) | 221.66 (5630) | 221.66 (5630) |
| Width | inch (mm) | 59.84 (1520) | 73.62 (1870) | 73.62 (1870) | 77.55 (1970) | 77.55 (1970) | 77.55 (1970) | 77.55 (1970) | 106.29 (2700) | 106.29 (2700) | 120.07 (3050) | 120.07 (3050) |
| Height | inch (mm) | 68.89 (1750) | 74.80 (1900) | 74.80 (1900) | 79.72 (2025) | 79.72 (2025) | 79.72 (2025) | 79.72 (2025) | 88.97 (2260) | 91.33 (2320) | 97.63 (2480) | 97.63 (2480) |
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
