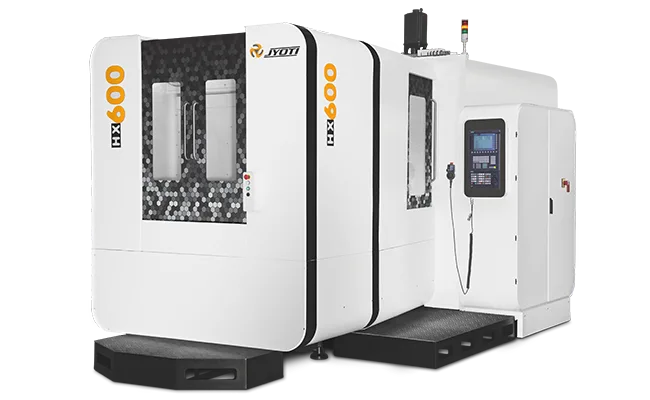

HX Series
Varients:
HX 400 / 500 / 510 / 600 / 610
Multi-face machining in single setup with high material removal and precision for heavy components like engine and cylinder head, gearbox casings, valve and pump body, motor body etc. Heavily ribbed robust T- Base, step-up structure, excellent balancing and high torque belt driven spindle offers suitability for roughing to precise finishing work. With 180° swing type auto pallet hanger with online fixture interface and auto tool changer machine serves as perfect productive solution in the segment.
Key Features
- Heavy duty rigid and dynamically balanced structure.
- Wide T-bed and step-up construction with triangular column.
- Powerful high torque belt driven BT-50 spindle.
- High torque geared head available.
- 180° swing type automatic pallet changer.
- 1° indexing rotary table.
- Online hydraulic fixture interfacing possible.
- Bi-directional 40 tool chain type ATC.
- Large accessibility for loading/unloading from top.
- Large working envelope.
- Ergonomics design and aesthetic look.
- Efficient chip flow from centre of the machine.
- Electrical with quality device & panel AC.
- Auto & manual coolant.
- Centralized & programmable lubrication.
3-point Leveling- Auto Pallet Changer
- Step-up structure
- TPM Friendly
| Unit | HX 400 | HX 500 | HX 510 | HX 600 | HX 610 | |
| Capacity | ||||||
| X-Axis Travel | inch (mm) | 23.6 (600) | 27.5 (700) | 31.4 (800) | 35.4 (900) | 47.2 (1200) |
| Y-Axis Travel | inch (mm) | 19.6 (500) | 23.6 (600) | 23.6 (600) | 28.7 (730) | 28.7 (730) |
| Z-Axis Travel | inch (mm) | 19.6 (500) | 23.6 (600) | 23.6 (600) | 29.5 (750) | 29.5 (750) |
| Dis. From Pallet Surface to Spindle Center | inch (mm) | 3.9-23.6 (100-600) | 3.9-27.5 (100-700) | 3.9-27.5 (100-700) | 3.9-32.6 (100-830) | 3.9-32.6 (100-830) |
| Dis. From Pallet Surface to Spindle Nose | inch (mm) | 3.9-23.6 (100-600) | 5.9-29.5 (150-750) | 5.9-29.5 (150-750) | 5.9-35.4 (150-900) | 5.9-35.4 (150-900) |
| Auto Pallet Changer | ||||||
| Pallet Size | inch (mm) | 15.7X15.7 (400X400) | 19.6X19.6 (500X500) | 19.6X19.6 (500X500) | 24.8X24.8 (630X630) | 24.8X24.8 (630X630) |
| Max.Workpiece Size (Dia. X Height) | inch (mm) | 23.6X27.5 (600X700) | 27.5X29.5 (700X750) | 27.5X29.5 (700X750) | 33.4X37.4 (850X950) | 33.4X37.4 (850X950) |
| Clamping System | Hole M16 100/50 Ø40 H6 | Hole M16 100/100 Ø40 H6 | Hole M16 100/100 Ø40 H6 | Hole M16 100/100 Ø50 H6 | Hole M16 100/100 Ø50 H6 | |
| Max. Weight on Pallet | lb (kg) | 882 (400) | 1764 (800) | 1764 (800) | 1764 (800) | 1764 (800) |
| Min. Table Indexing* | deg. | 0.001° | 1° | 1° | 1° | 1° |
| Pallet Indexing Time | sec | 8 | 12 | 12 | 15 | 15 |
| Main Spindle | ||||||
| Spindle Nose | BT-40 | BT-50 | BT-50 | BT-50 | BT-50 | |
| Max. Spindle Speed | rpm | 0-12000 | 0-6000 | 0-6000 | 0-6000 | 0-6000 |
| Spindle Motor Power - Fanuc 0i MF | hp (kW) | 14 (10.5) | 20.1/14.7 (15/11) | 20.1/14.7 (15/11) | 29.5/24.8 (22/18.5) | 29.5/24.8 (22/18.5) |
| Spindle Motor Power - Siemens 828D | hp (kW) | 14 (10.5) | 24.1/16 (18/12) | 24.1/16 (18/12) | 34.1/22.7 (25.5/17) | 34.1/22.7 (25.5/17) |
| Spindle Drive Type | Built In Motor | Belt Drive | Belt Drive | Belt Drive | Belt Drive | |
| Feedrate | ||||||
| Rapid Traverse (X, Y & Z Axis) | ipm (m/min) | 1575 (40) | 1181 (30) | 1181 (30) | 1181 (30) | 1181 (30) |
| Cutting Feed | ipm (m/min) | 394 (10) | 394 (10) | 394 (10) | 394 (10) | 394 (10) |
| Automatic Tool Changer | ||||||
| Number of Tool | 24 | 40 | 40 | 40 | 40 | |
| Max. Tool Dia. Pockets (All/Adj. empty) | inch (mm) | 3.14/4.92 (80/125) | 4.92/9.84 (125/250) | 4.92/9.84 (125/250) | 4.92/9.84 (125/250) | 4.92/9.84 (125/250) |
| Max.Tool Length | inch (mm) | 11.8 (300) | 13.7 (350) | 13.7 (350) | 13.7 (350) | 13.7 (350) |
| Max.Tool Weight | lb (Kg) | 18 (8) | 44 (20) | 44 (20) | 44 (20) | 44 (20) |
| Tool Changing Time (Tool - Tool) | sec | 2 | 3.5 | 3.5 | 3.5 | 3.5 |
| Accuracy (As per VDI/DGQ 3441) | ||||||
| Positioning Uncertainty (P) | inch (mm) | 0.00039 (0.01) | 0.00039 (0.01) | 0.00039 (0.01) | 0.00059 (0.015) | 0.00059 (0.015) |
| Repeatability (Ps medium) | inch (mm) | 0.00019 (0.005) | 0.00019 (0.005) | 0.00019 (0.005) | 0.00027 (0.007) | 0.00027 (0.007) |
| Other Data | ||||||
| Weight (Approx.) | lb (Kg) | 18298 (8300) | 28660 (13000) | 28660 (13000) | 33069 (15000) | 33069 (15000) |
| Dimension (Approx.) | ||||||
| Length | inch (mm) | 200.7(5100) | 204.7 (5200) | 204.7 (5200) | 228.3 (5800) | 228.3 (5800) |
| Width | inch (mm) | 114.1 (2900) | 141.7 (3600) | 145.6 (3700) | 153.5 (3900) | 165.3 (4200) |
| Height | inch (mm) | 102.3 (2600) | 124 (3150) | 124 (3150) | 128 (3250) | 128 (3250) |
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
