KX Five
KX Five nvu Series
Varients:

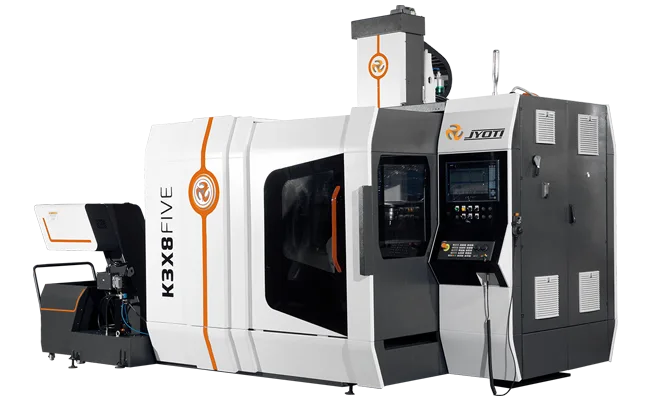

K3X8 Five nvu / K2X10 Five
KX Five Series, HSM concept enabling operation in 5-axis simultaneous from roughing to finishing of variety of complex high precision applications. The fix portal design combines high dynamics and accuracy with improved surface quality. Powerful high speed electro-spindle assures high metal removal rate. Rotary table is equipped with TRIM technology offers inclination at 55° allowing negative angle which can be rotate up to 50 rpm with area of φ 500mm, -30°/+180° tilting. Multiple variant in multiple pallet and ATC adds productive advantage with the series. These series is specially designed for injection moulds, complex aerospace components or high integrity mechanical parts.
Key Features
- Structure with fixed portal in ribbed cast iron with stiffness wall.
- Harmonically stable Machine for complex part machining.
- A & C axis TRIM table with high torque capacity.
- 20° negative angle in table for 6th side machining.
- Large accessibility from the top for better approach.
- Incremental measurement by optical encoders.
- High speed 24000rpm electro-spindle.
- Multiple variant in palletization up to 6 pallets.
- 20 tool fast auto tool changer.
- Efficient chip disposal and easy chip evacuation.
- Electrical with quality device & panel AC.
- Ergonomic design and aesthetic look.
- Auto & manual coolant.
- Centralized & programmable lubrication.
High Speed Machine- Simultaneous 5-Axis Machine
- Rotary Table with TRIM
- High Speed Electro Spindle
| K3X8 Five | K2X10 Five | ||
| Linear Axia X/Y/Z | |||
| Travels | inch (mm) | 30.7x27.5x19.6 (780x700x500) | 35.4x35.x19.6 (900x900x500) |
| Rapid Feedrates | inch /min (m/min) | 1968.5 (50) | |
| Acceleration on Axis | inch/s2 (m/s2) | 1.97 (5) | |
| Structure | |||
| Tilting Axis - A | +30/-180° | +45/-180° | |
| Rotation Speed A - Axis | rpm | 50 | 40 |
| Rotation Axis - C | 360° | 360° | |
| Rotation Speed C - Axis | rpm | 50 | 90 |
| Working Positioning | Horizontal Position = 0 | Horizontal Position = 0 | |
| (Angle Spindle Axis / Table) | Vertical Position = 90 Inclined = -20 | Vertical Position = 90 | |
| Table | |||
| Table Area | inch (mm) | 19.68 (500) | 24.80 (630) |
| Admissible Load on Table | lb (kg) | 551 (250) | 1102 (500) |
| Distance from Spindle nose to table top | inch (mm) | 20.66 (525) | 27.55 (700) |
| Spindle | |||
| Rotating Speed | rpm | 18000 | |
| Tool Taper | HSK 63A | ||
| Power- Torque (S6-40%/S1) | hp-ft-lb (kW-Nm) | 35.8-81.1/61.9 (26.7-110/84) | |
| Characteristic Speed | rpm | 3400 | |
| Tool Magazine | |||
| Pocket Quantity | 30 | 30 | |
| Max.Tool Length | inch (mm) | 9.84 (250) | 11.81 (300) |
| Tool Diameter | inch (mm) | 3.54 (90) | 3.54 (90) |
| Max. Tool Weight | lb (kg) | 15.4 (7) | 17.6 (8) |
| Accuraccies | |||
| Positioning Uncertainty (P) | Linear axes X-Y-Z : 4micron-Rotating axes A-C : 7.2 sec | ||
| Repeatability (Ps medium) | Linear axes X-Y-Z : 2micron-Rotating axes A-C : 3.6 sec | ||
| Coolant | |||
| Flow-Pressure | gal/min (l/min) | 7.92-3 (30-3) | |
| Tank Capacity | gal (liters) | 60.7 (230) | |
| Over-all Dimension | |||
| Length/Width/Height | inch (mm) | 106/185/131 (2690/4710/3320) | 138/193/137 (3510/4910/3470) |
| Machine Weight | lb (kg) | 22046 (10000) | 31967 (14500) |
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
