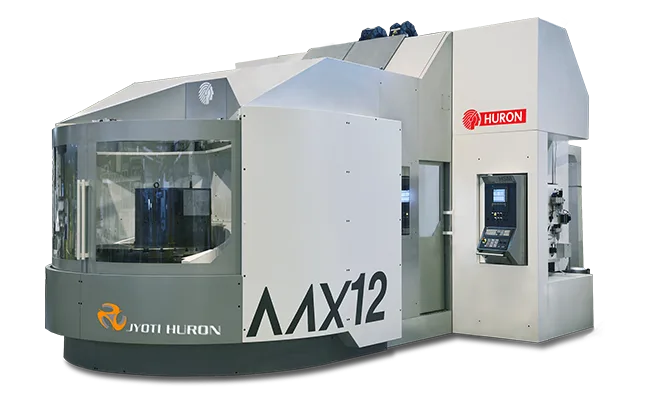

MX Series
Varients:
MX-8/MX-9/10/11/MX 12L M/MT, MX 16M, MX20 M
The MX Series is a multifunction high flexible machine enabling Milling & Turning operation roughing to finishing in one setup part clamping. A structure with mobile column, milling head equipped with integrated torque motor and swivels on 45° plane, tilting from -45 ̊ to 180 ̊. Powerful electro-spindle has two working position vertical and horizontal. C-Axis rotary table with 250rpm enables turning of large diameter components. The series accommodate large job envelope with constant accuracy and precision with rapid of 40 m/min. Machine is equipped with a twin pallet whose changing time is less than 1 minute and have large number of tool ATC which are very useful in sector of aerospace industries as well as in energy sector for heavy jobs.
Key Features
- High speed & high precision 5-axis mill-turn machine.
- Mobile column extreme rigid structure.
- Harmonically stable machine.
- Rotary table with direct driven torque motor.
- Swiveling head of -45° /+ 180°.
- Two position head vertical & horizontal.
- Powerful electro-spindle with high torque.
- Fork type head available for negative angle machining.
- High rapid of 40 m/min
- Faster automatic work piece changer.
- Roller types L.M. guideways with linear glass scale
- Large accessibility from top for loading/unloading.
- Efficient chip flow and effective chip evacuation.
- Electrical with quality device & panel AC.
- Auto & manual coolant.
- Centralized & programmable lubrication.
Simultaneous 5-axis Machining- High Speed Machining
- Automatic Pallet Changer
- TRIM Table
- High Speed Electro Spindle
| MX 8 [M] | MX 8 [MT] | MX 10 [M] | MX 10 [MT] | MX 11 [M] | MX 12 [M] | MX 12 [MT] | MX 12L [M] | MX 12L [MT] | MX 16 [M] | MX 20 [M] | ||
| Travels | mm | 1160 x 1000 x 900 | 1200 x 1200 x 1000 | 1250 x 1250 x 1000 | 1200 x 1600 x 1000 | 2000 x 1600 x 1100 | 2300 x 2300 x 1250 | 3000 x 3100 x 1600 | ||||
| Rapid Feed Rates | m/min | 40 | 40 | 60 | 40 | 40 | 40 | 20 | ||||
| Acceleration on Axis | m/s² | 4 | 4 | 4 | 4 | 4 | 3 | 1.8 / 2 / 2 | ||||
| Rotating Axis A - Head | ||||||||||||
| Rotating Speed | rpm | 100 | 100 | 30 | 100 | 100 | 100 | 100 | ||||
| Torque : Clamping / Motor | Nm | 2500/2120 | 2500/2120 | 7000/2660 | 2500/2120 | 2500/2120 | 7000/3640 | 7000/3640 | ||||
| Rotating Axis C - Table | ||||||||||||
| Rotating Speed | rpm | 50 | 500 | 65 | 500 | 30 | 50 | 250 | 50 | 250 | 9 | 7 |
| Area | mm | Ø 1000 x 800 | Ø 800 | Ø 1250 x 900 | Ø 1000 | Ø 1250 x 1100 | Ø 1600 x 1250 | Ø 1400 | Ø 1600 x 1250 | Ø 1400 | Ø 1750 | Ø 2200 |
| Admissible Load | kg | 2000 | 2000 | 2500 | 2500 | 2500 | 4000 | 4000 | 4000 | 4000 | 10000 | 12000 |
| Spindle | ||||||||||||
| Rotating Speed | rpm | 15000 | 10000 | 15000 | 10000 | 10000 | 15000 | 10000 | 15000 | 10000 | 10000 | 10000 |
| Taper | HSK 63A | HSK 100A | HSK 63A | HSK 100A | HSK 100A | HSK 63A | HSK 100A | HSK 63A | HSK 100A | HSK 100A | HSK 100A | |
| Power | kW | 29 | 43/33 | 29 | 43/33 | 43/33 | 29 | 43/33 | 29 | 43/33 | 43/33 | 43/33 |
| Torque (S6-40% / S1) | Nm | 277 | 415/313 | 277 | 415/313 | 415/313 | 277 | 415/313 | 277 | 415/313 | 415/313 | 415/313 |
| Characteristic Speed | rpm | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Accuracy | Linear Axis | Rotating Axis | Linear Axis | Rotating Axis | ||||||||
| Uncertainty P | 7 µ | 10 sec | 7 µ | 10 sec | ||||||||
| Repeatability : Ps Medium | 4 µ | 5 sec | 4 µ | 5 sec | ||||||||
| Tool Magazine | ||||||||||||
| Pockets Quantity | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | ||
| Taper | HSK 63A | HSK 100A | HSK 63A | HSK 100A | HSK 100A | HSK 63A | HSK 100A | HSK 63A | HSK 100A | HSK 100A | ||
| Tool Length | mm | 400 | 500 | 400 | 650 | 650 | 400 | 650 | 400 | 650 | 400 | |
| Tool Diameter (All/Adj.Empty) | Ø (mm) | 95/120 | 125/250 | 95/120 | 125/250 | 125/250 | 95/120 | 125/250 | 95 / 120 | 125/250 | 120 | |
| Max. Tool Weight | kg | 8 | 25 | 8 | 25 | 25 | 8 | 25 | 8 | 25 | 10 | |
| Coolant | ||||||||||||
| Flow - Pressure | lpm - bar | 30 - 5 | 60 - 5 | 60 - 5 | 30 - 5 | |||||||
| Tank | ltr | 700 | 1500 | 1500 | 1500 | |||||||
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
