RX/RAX Series
Varients:

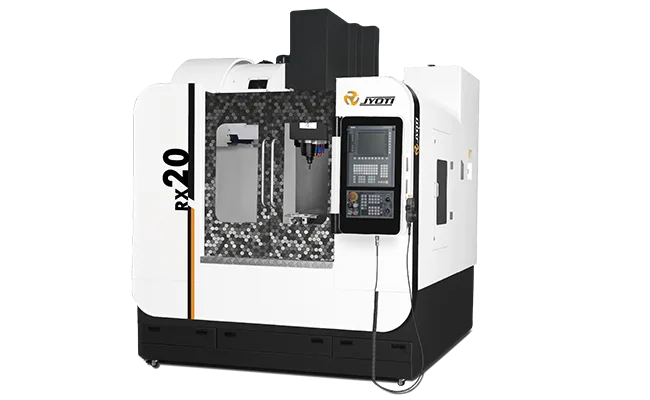

RX 10 / RX 20 / RX 30nvu / RAX 20
Jyoti has specially developed RX Series to match the demand of greater accuracy and total reliability with higher speed. Robust single piece base and broader column structure made up of graded cast iron for better vibration damping. Rigid saddle provides excellent stability during high cutting condition and heavy weight components. The series finds wide spread applications to get the production work.
Key Features
- High dynamics support rapid up to 40 m/min.
- High precision 8000 rpm, BT-40 spindle.
- Fast Auto tool changing, just 2.4 sec.
- Wider high precisions liner motion guide ways.
- Pallet changer option available.
- 90° tilting operator panel.
- 4th & 5th axis machining by using rotary table.
- Ergonomic design.
- Auto & manual coolant.
- Easy chip evacuation.
- Electrical with quality device & panel AC.
90° tilting operating panel- TPM Friendliness
- 3 Point Leveling
- Fast ATC
| Table | RX 10 | RX 20 | RX 30 | |
| Table Size | mm | 800 X 500 | 1000 X 530 | 1200 X 550 |
| T-Slot Dimention | mm | 4X14X100 | 4X18X100 | 5X18X100 |
| Distance from Floor to Table | mm | 965 | 990 | 1025 |
| Max. Load on Table | kg | 500 | 600 | 900 |
| Capacity | ||||
| X-Axis Travel | mm | 600 | 820 | 1020 |
| Y-Axis Travel | mm | 450 | 510 | 600 |
| Z-Axis Travel | mm | 510 | 510 | 610 |
| Dis. From Spindle Face to Table Top (Min.-Max.) | mm | 150-660 | 125-635 | 125-735 |
| Feed | ||||
| Rapid Traverse (X,Y & Z Axis) | m/min | 40 | 40 | 40 |
| Cutting Feed | m/min | 10 | 10 | 10 |
| Main Spindle | ||||
| Spindle Speed Range | rpm | 6000 | 6000 | 6000 |
| Spindle Motor Power -Fanuc | kW | |||
| Spindle Motor Power -Siemens | kW | |||
| Front Bearing Bore | mm | 70 | 70 | 70 |
| Spindle Nose | BT - 40 | BT - 40 | BT - 40 | |
| Automatic Tool Changer | ||||
| Number of Tool | 20 | 20 | 20 | |
| Max. Tool Dia. Pockets (All/Adj. empty) | mm | 80/125 | 80/125 | 80/125 |
| Max. Tool Weight . | kg | 7 | 7 | 7 |
| Max. Tool Length . | mm | 250 | 250 | 250 |
| Accuracy (As per VDI/DGQ 3441) | ||||
| Positioning Uncertainty (P) | mm | 0.01 | 0.01 | 0.015 |
| Repeatability (Ps medium) | mm | 0.005 | 0.005 | 0.007 |
| Other Data | ||||
| Weight # (Approx.) | kg | 5350 | 5450 | 6500 |
| Dimension # (Approx.) | ||||
| Length | mm | 2625 | 2625 | 3650 |
| Width | mm | 2100 | 2100 | 2600 |
| Height | mm | 2750 | 2750 | 2900 |
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
