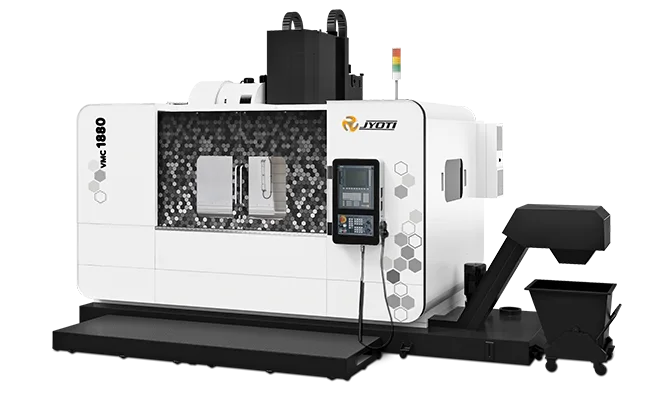

VMC Performance Large Series (T-BASE VMC)

To match greater accuracy with stability during high cutting condition for large size of components, Jyoti has developed Performance Large Series Vertical Machining Centers. Unique T-Base design and twin layer broad column structure sustains the vibrations & balances the machine against heavy cutting load and higher machining parameters. This machines finds its place in applications where heavy material removal where direct machining required from castings and forgings. The Series finds its application for injection moulding, investment castings, shell castings, forging dies, pressure die casting, pattern making and production work.
Key Features
  • High dynamics, unique T-Base step up structure.
  • Throughout base support to rigid triangular saddle.
  • Broad column design for stable and balanced conditions.
  • Higher load carrying capacity of table throughout full working area.
  • Wider roller type precision liner motion guideways.
  • Direct coupled ballscrew.
  • High performance 8000 rpm BT-40 spindle.
  • Electricals with quality device & panel AC.
  • 90° tilting operator panel.
  • Ergonomic design.
  • Auto & manual coolant.
  • Efficient chip flow and disposal.
  • Wide working area.
  • TPM friendly.
  • Centralized & programmable lubrication.
  • Monoblock Structure
    Monoblock Structure
  • 90° tilting operating panel
    90° tilting operating panel
  • TPM Friendliness
    TPM Friendliness
  • Step-up Structure
    Step-up Structure
  VMC 1570VMC 1580VMC 1870VMC 1880
Table
Table Sizeinch (mm)66.9 x 31.8 (1700 x 810)66.9 x 31.8 (1700 x 810)78.7 x 31.8 (2000 x 810)78.7 x 31.8 (2000 x 810)
T-Slot Dimentioninch (mm)0.19 x 0.70 x 5.90 (5 x 18 x 150)0.19 x 0.70 x 5.90 (5 x 18 x 150)0.19 x 0.70 x 5.90 (5 x 18 x 150)0.19 x 0.70 x 5.90 (5 x 18 x 150)
Distance from Floor to Tableinch (mm)52.7 (1340)52.7 (1340)52.7 (1340)52.7 (1340)
Max. Load on Tableibf (kgf)4409 (2000)4409 (2000)5511 (2500)5511 (2500)
Capacity
X-Axis Travelinch (mm)59.4 (1510)59.4 (1510)71.2 (1810)71.2 (1810)
Y-Axis Travelinch (mm)27.9 (710)27.9 (710)27.9 (710)31.8 (810)
Z-Axis Travelinch (mm)31.8 (810)31.8 (810)31.8 (810)31.8 (810)
Dis. From Spindle Face to Table Top (Min.-Max.)inch (mm)5.9-37.7 (150-960)5.9-37.7 (150-960)5.9-37.7 (150-960)5.9-37.7 (150-960)
Feed
Rapid Traverse (X,Y & Z Axis)ipm (m/min)787 (20)787 (20)787 (20)787 (20)
Cutting Feedipm (m/min)393 (10)393 (10)393 (10)393 (10)
Main Spindle
Spindle Speed Rangerpm8000800080008000
Spindle Motor Power (Siemens 828D)hp (kW)19.7/14.7(14.3 / 11)19.7/14.7(14.3 / 11)19.7/14.7(14.3 / 11)19.7/14.7(14.3 / 11)
Spindle Motor Power (Fanuc 0i MF)hp (kW)14.7/10 (11 / 7.5)14.7/10 (11 / 7.5)14.7/10 (11 / 7.5)14.7/10 (11 / 7.5)
Front Bearing Boreinch (mm)2.7 (70)2.7 (70)2.7 (70)2.7 (70)
Spindle Nose BT 40BT 40BT 40BT 40
Automatic Tool Changer
Number of Tool 20202020
Max. Tool Dia. Pockets (All/Adj. empty)inch (mm)3.1/4/9 (80/125)3.1/4/9 (80/125)3.1/4/9 (80/125)3.1/4/9 (80/125)
Max.Tool Weightlb (kg)15 (7)15 (7)15 (7)15 (7)
Max.Tool Lengthinch (mm)9.8 (250)9.8 (250)9.8 (250)9.8 (250)
Accuracy (As per VDI/DGQ 3441)
Positioning Uncertainty (P)inch (mm)0.00059 (0.015)0.00059 (0.015)0.00059 (0.015)0.00059 (0.015)
Repeatability (Ps medium)inch (mm)0.00031 (0.008)0.00031 (0.008)0.00031 (0.008)0.00031 (0.008)
Weightlb (kg)32628 (14800)33069 (15000)36090 (16370)36927 (16570)
Dimension
Heightinch (mm)124.8 (3170)130.3 (3310)124.8 (3170)130.3 (3310)
Widthinch (mm)158.3 (4023)158.3 (4023)177.4 (4507)177.4 (4507)
Lengthinch (mm)157.2 (3994)157.2 (3994)157.2 (3994)157.2 (3994)
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
