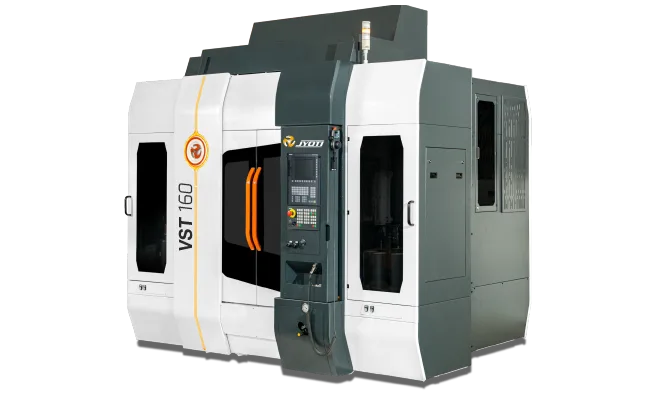

Vertical Shaft TurningVST 160
Looking at the current growth and consumption of EV vehicles as well as other electrical and power transmission components JYOTI has developed 4-Axis vertical turning center with heavy material removal rate for shaft and other similar components which is named as VST 160. This machine is highly acceptable in industries where production is planned for small batches to mass production with the help of integrated automation system.
Key Features
- Siemens 828D & Fanuc 0i TF Plus CNC Controller
- Linear Glass Scale
- Job Feeder with 12+12=24 Pallets
- Twin Turret 9 Station
- Chip Conveyor Rear
- Digital Tailstock
- Auto & Manual Coolant Systemn
- Centralized Programmable Lubrication
- Roller Type Linear Motion Guideways
- Electrical Cabinet with Controlled Temperature
- Tool Life Management
| Capacity | ||
| Max. Turning Lenght* | inch (mm) | 24.60 (625) |
| Std. Turning Dia. (with gripper) | inch (mm) | 2.55 (65) |
| Max. Job Dia.** | inch (mm) | 7.87 (200) |
| Max. Turning Dia.* | inch (mm) | 4.92 (125) |
| Slides | ||
| X-Axis Travel (Cross) | inch (mm) | 9.44 (240) |
| Z-Axis Travel (Longitudinal) | inch (mm) | 24.60 (625) |
| Feed | ||
| Rapid Feed (X/Y/Z Axis) | ipm(m/min) | 787.40 (20) |
| Cutting feed | ipm(m/min) | 393.70(10) |
| Main Spindle | ||
| Spindle Speed | rpm | 5000 |
| Spindle Motor Power | hp(kW) | |
| Spindle Nose | A26 | |
| C Axis Resolution | Deg | 0.001° |
| Turret | ||
| No. of Turret [station] | 9+9 | |
| Tool holder type | BMT 55 | |
| Auto Loader | ||
| Input Feeder | Nos. | 12 |
| Output Feeder | Nos. | 12 |
| Max. Possible Job Weight | lb (kg) | 19(8.5) |
| Accuracy (As per VDI/DGQ 3441) | ||
| Positioning Uncertainty (P) | inch (mm) | 0.00039 (0.01) |
| Repeatability (Ps medium) | inch (mm) | 0.00019(0.005) |
| Other | ||
| Machine Weight #(Approx.) | lb (kg) | 19180 (8700) |
| Machine Dimension # (Approx.) | ||
| Length | inch (mm) | 167.32 (4250) |
| Width | inch (mm) | 120.07(3050) |
| Height | inch (mm) | 124.01(3150) |
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
