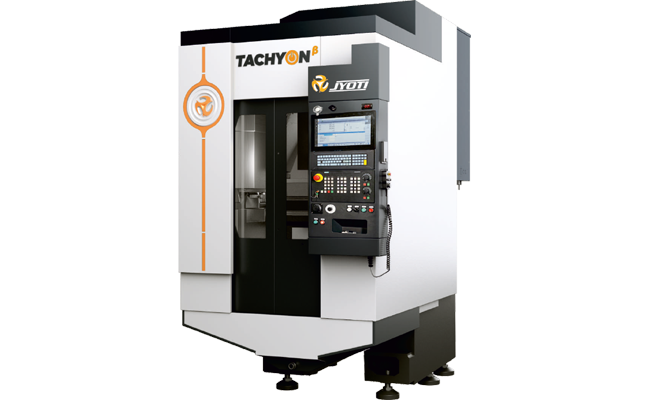

Tachyon Beta

Developed to meet the growing demand for high-speed and high-precision machining in the EMS, Electronics, Medical, Aerospace and Precision Engineering industries, the Tachyon Beta 5-Axis Machining Center combines exceptional speed, accuracy and agility in a compact footprint. Its advanced 5-axis machining capability, high-speed linear motion, precision feedback system, ultra-high-speed spindle and integrated rotary tilting table enable efficient machining of complex geometries with superior accuracy and surface finish. Tachyon Beta is ideally suited for small and intricate precision machining applications where high productivity, flexibility, accuracy and reduced cycle time are critical to modern manufacturing requirements.
Key Features
  • High-Speed 5-Axis Machining Center
  • Linear Motor Drive for Linear Axes
  • High-Precision Linear Scales for Improved Accuracy
  • High-Speed Electro Spindle up to 42,000 rpm
  • Integrated Direct-Drive Rotary Tilting Table
  • Rapid Traverse up to 120 m/min
  • High Acceleration up to 2g
  • High-Speed Tool Changer with 40 Tool Pockets
  • Compact Machine Footprint
  • Integrated Chip Tray for Efficient Chip Collection
  • Simultaneous 5-Axis Machining Capability
  • Precision Machining with High Dynamic Response
  • High Speed Machining
    High Speed Machining
  • Linear Motor Drive
    Linear Motor Drive
  • High Rapid Speed
    High Rapid Speed
  • Faster ATC
    Faster ATC
  • Compact Machine
    Compact Machine
TableTachyon Beta
Table Sizemm200
T-Slot Dimensionmm4 x 14 - 90°
Distance from Floor to Tablemm850
Max. Load on Tablekg30
Capacity
X-Axis travelmm400
Y-Axis travelmm400
Z-Axis travelmm350
Dis. From Spindle Face to Tabletop (Min.-Max.)mm100-450
B-axis strokeDeg.+20/-110
C-axis strokeDeg.360°
Feed
Rapid Traverse (X/Y/Z Axis)m/min120
Axis AccelerationG1.5/1.5/2
Cutting Feedm/min30
Main Spindle
Spindle Speedrpm42000
Spindle Motor PowerkW6.5
Spindle NoseHSK 40A
Automatic Tool Changer
No. of ToolNos.40
Max. Tool Dia.mm50
Max.Tool Lengthmm150
Max.Tool WeightKg2
Accuracy with Glass Scale (As per VDI/DGQ 3441)
Positioning Uncertainty (P)mm0.004
Repeatability (Ps medium)mm0.002
Other Data
Machine Weight (Approx.)#Kg2500
Machine Dimension (Approx.)#
Lengthmm2500
Widthmm1250
Heightmm2600
* Depend upon clamping arrangement, Tooling & Job
# Refer machine detailed layout
